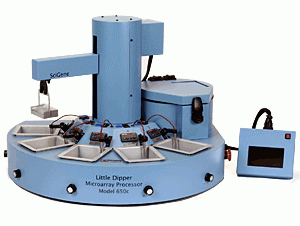

Little Dipper Processor for Self-Spotted Arrays
Little Dipper Processor
Automates post-hybridization processing of self spotted microarrays on glass slides. Controls wash time, agitation, buffer temperatures and drying using an integrated centrifuge. Batches of 1 to 24 slides are processed following operator-specified programs with the handheld touch screen. Can also be used with Agilent or Illumina microarrays or for pre-and post hybridization processing of FISH slides with additional accessories.
Produces slides with high signals and low, uniform backgrounds
“Load and go” walk-away automation
Simple temperature validation for CLIA certification
Use with NoZone Workspace for ozone protection
Use with the Hybex Microarray System for a complete hybridization solution
For Research Use Only
PRODUCT
CATALOG #
UoM
USA Price
BUY
Little Dipper for Self-Spotted Arrays, 115V.
1080-50-1
EA
Inquire Little Dipper for Self-Spotted Arrays, 230V.
1080-50-2
EA
Inquire
OPTIONAL ITEMS (USA Only)
CATALOG #
UoM
USA Price
BUY
Annual Service Contract for the Little Dipper Processor 1080-01-6 EA Inquire Little Dipper Installation and Operator Training. 1080-90-0 EA Inquire
ACCESSORIES
CATALOG #
UoM
USA Price
BUY
Digital Thermometer with NIST certificate.
1051-52-0 EA $325.00 Little Dipper Bath, Standard (670 ml).
1080-10-1 EA $400.00 Little Dipper Bath, Low Volume, Heatable (275 ml).
1080-10-5 EA $400.00 Little Dipper Bath Cover, for pre-heating.
1080-12-0 EA $180.00 Little Dipper Slide Rack, 12-Position
1080-20-1 EA $450.00 Little Dipper Slide Rack, 24-Position
1080-20-5 EA $775.00 Absorbent Pads for 24 Slide Rack Buckets.
1080-21-0 25/PK $50.00 Absorbent Pads for 12 Slide Rack Buckets.
1080-21-1 25/PK $50.00 Spacer for Rack Bucket, 2/pk. For 24 Slide Racks.
1080-22-3 2/PK $75.00 Spacer for Rack Bucket, 2/pk. For 12 Slide Racks.
1080-23-3 2/PK $75.00 24 Slide Rack Kit. Includes two 24-slide racks, large centrifuge buckets, spacers and pads.
1080-25-0 EA $1,700.00 12 Slide Rack Kit. Includes two 12-slide racks, small centrifuge buckets, spacers and pads.
1080-25-2 EA $1,150.00
Little Dipper Processor for Self-Spotted Arrays
Specification
Description
Baths and Racks Included
5x Bath, Standard (670 ml)
2x Slide Rack, 12-Position for standard 3 inch slides.
Electrical
Cat # 1080-50-1
Cat # 1080-50-2
115V AC, 50/60Hz, 1700 W
230V AC, 50/60 Hz; 1700 W
Dimensions (HxWxD)
20 x 28 x 22 inches (51x 71 x 56 cm)
Instrument Weight
47 lbs (21 kg) net
Performance and Controls
Temperature Range
Temperature Regulation
Agitation Speed
Agitation Stroke Length
Centrifuge RPM / Force
Protocol Storage
Ambient +5o C to 90o C
± 0.5o C from set point
0 to 600 relative units
Selectable, standard (9.5 mm) or long (29.5 mm)
Up to 14 protocols, 1 to 9 steps each
RoHS
