Little Dipper Processor for Illumina BeadChips

Little Dipper Processor

Automates the staining and washing steps used with Illumina Infinium HD and Expression BeadChips. Controls wash time, agitation, buffer temperatures and drying using an integrated centrifuge. Batches of 1 to 12 slides are processed following Illumina recommended protocols. Use in all BeadChip applications including gene expression, SNP genotyping and CNV analysis. Can also be used with Agilent arrays or for pre- and post hybridization processing of FISH slides with additional accessories.

• Produces slides with high signals and low, uniform backgrounds
• “Load and go” walk-away automation
• Automates Direct Gene Expression and DASL protocols
• Simple temperature validation for CLIA certification

For Research Use Only
USA Ordering Information
 Outside USA, Click Here

PRODUCT
CATALOG #
UoM
USA Price
BUY
Little Dipper Processor for BeadChips, 115V.
1080-30-1
EA
 Inquire
Little Dipper Processor for BeadChips, 230V.
1080-30-2
EA
 Inquire

OPTIONAL ITEMS (USA Only)
CATALOG #
UoM
USA Price
BUY
Extended Warranty - Additional 12 Months. 1080-01-1 EA $2,100.00
Extended Warranty - Additional 24 Months 1080-01-2 EA $3,700.00
Extended Warranty - Additional 36 Months 1080-01-3 EA $5,300.00
On-site Operator Training and Certification 1080-90-0 EA $1,500.00



ACCESSORIES
CATALOG #
UoM
USA Price
BUY
Digital Thermometer with NIST certificate.
 1051-52-0 EA $285.00
Bath, Standard (670 ml).
 1080-10-1 EA $275.00
Bath, Low Volume, Non Heatable (210 ml).
 1080-10-2 EA $275.00
Bath, Low Volume, Heatable (275 ml).
1080-10-5 EA $275.00
Bath Cover, for pre-heating.
 1080-12-0 EA $50.00
Bath Covers, set of 5, for pre-heating.
 1080-12-1 5/PK $225.00
Bath Cover, Slotted, for Little Dipper 12-position slide rack.
 1080-12-2 EA $250.00
Bath Cover, Slotted, for Little Dipper 24-position slide rack.
 1080-12-4 EA $250.00
Slide Rack, 12-Position for Illumina 3.25 inch slides.
 1080-20-2 EA $225.00
Absorbent Pads for 12-Position Rack Buckets.
 1080-21-1 25/PK $25.00
Spacer for Rack Bucket, 2/pk. Fits Hybex and 24-Position racks.
 1080-22-3 2/PK $75.00
Upgrade Kit for Agilent Arrays. Includes 4x Standard Baths and 2x 12-Position Slide Racks for 3 inch slides.
 1080-41-0 EA $1,300.00
Little Dipper Processor for Illumina BeadChips

Specification
Description
Racks and Baths Included
1x Bath, Standard (670 ml).
6x Bath, Low Volume, Non Heatable (210 ml).
2x Slide Rack, 12-Position for Illumina 3.25 inch slides.
Electrical
Cat # 1080-30-1
Cat # 1080-30-2

115V AC, 50/60 Hz, 1700 W
230V AC, 50/60 Hz, 1700 W
Dimensions (HxWxD)
20 x 28 x 22 inches (51x 71 x 56 cm)
Instrument Weight
47 lbs (21 kg) net
Performance and Controls
Temperature Range
Temperature Regulation
Agitation Speed
Agitation Stroke Length
Centrifuge RPM / Force
Protocol Storage

Ambient +5o C to 90o C
± 0.5o C from set point
0 to 600 relative units
Selectable, standard (9.5 mm) or long (29.5 mm)
690 RPM / 50 g
Up to 14 protocols, 1 to 9 steps each

CE





TUVRheinland

Little Dipper Processor for Illumina BeadChips

Publication #
Title
Publication Type
S13
Product Snapshot
504
Manual
101
Method
113
Method
421
Support Document

Related Products

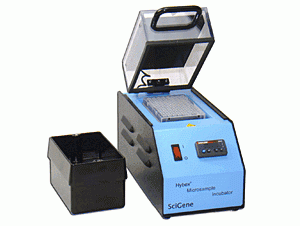

Hybex System for Illumina
