Home > Products > Hybex® Microarray Incubation System
Hybex Microarray Incubation System

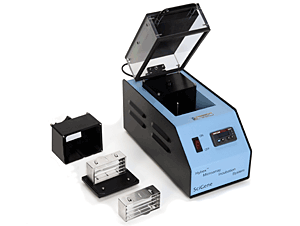

The Hybex Microarray Incubation System

Complete system for microarray incubation and washing specified by Illumina/BlueGnome. Removable humidified chambers hold four 4-slide racks. After incubation, slides remain in racks for manual slide washing or are transferred to a Little Dipper Processor for automated washing and drying. An optional waterbath insert is used for heating wash buffers.

  • Specified by Illumina/BlueGnome for BeadChip and 24Sure applications
  • Slide racks reduce handling from loading to coverslip removal and washing
  • Regulates temperatures ± 0.1°C
  • Integrates with automated Little Dipper Processor
  • Simple temperature calibration

For Research Use Only

USA Ordering Information
Outside USA, Click Here

PRODUCT
CATALOG #
UoM
USA Price
BUY
Hybex Microarray Incubation System, 115V. Comes complete with chambers, slide racks and tools.
1057-36-1
EA
$4,750.00
Hybex Microarray Incubation System, 230V. Comes complete with chambers, slide racks and tools.
1057-36-2
EA
Inquire


BLOCKS & INSERT
CATALOG #
UoM
USA Price
BUY
Hybex 0.2 ml tube block. Holds 96 x PCR tubes or plate
1057-31-0 EA $325.00
Hybex 0.6 ml tube block. Holds 60 x 0.6 ml tubes
1057-33-0 EA $325.00
Hybex 1.5 ml tube block. Holds 32 x 1.5 ml tubes
1057-34-0 EA $325.00
Hybex Water Bath Insert, 625 ml
1057-35-0 EA $550.00
Additional Hybex Microarray Incubation Chamber Kit. Includes two chambers, slide racks and handles.
1057-38-0 EA $3,450.00
Flat-bottom heat block for microplate
1057-39-0 EA $325.00

ACCESSORIES
CATALOG #
UoM
USA Price
BUY
Digital Thermometer with NIST certificate.
1051-52-0 EA $285.00
Absorbent Pad for Hybex Microarray Chamber Cover (25/pk)
1057-32-1 EA $45.00
Hybex Microarray Incubation System

Specification
Description
Equipment Included
Heating base, two microarray chambers, slide racks and handles.
Electrical
Cat # 1057-36-1
Cat # 1057-36-2

115V AC; 50/60Hz, 3A
230V AC; 50/60Hz, 1.6A
Dimensions (HxWxD)
10 x 6 x 12 inches (21 x 15 x 30 cm)
System Weight
8 lbs (4 kg) net
Performance and Controls
Temperature Range
Temperature Regulation

ambient +5.0°C to 99.0°C
± 0.1°C from set point

TUVRheinland







CE





RoHS
