Mai Tai Hybridization System*

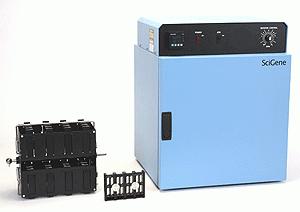

System shown with oven, rotator and cassette.

Complete microarray hybridization system consisting of rotating oven, rotator and hybridization cassette. Unique convection heating system regulates chamber temperature to ± 0.2°C; eliminating hot/cold spots. Two ovens are available: the Model 777 rotates to 80 RPM for Agilent or Affymetrix arrays. Model 700 rotates to 20 RPM for Agilent arrays. Uses simple two-piece 4-slide cassette. Rotator holds up to 8 cassettes (32 slides) for rotational mixing during incubation. Mai Tai rotators are available for SciGene, Agilent and Robbins Scientific ovens.

Mai Tai Cassette:
• Two piece design reduces handling errors
• Replaces 4x single slide Agilent SureHyb chambers
• Priced 40% less than 4x Agilent SureHyb chambers
• Automation compatible – microplate footprint

Microarray Oven:
• Temperature controlled to ± 0.2°C with no hot/cold spots
• Heats to 99.0°C for Agilent SureSelect and other special applications
• Adjustable rotation to 20 RPM (Model 700) or 80 RPM (Model 777)
• Jog switch adjusts rotator position for easy cassette loading
• Internal rotator easily drops in and lifts out without tools
• Simple temperature calibration for CLIA validation

(*) Patent pending.

For Research Use Only

USA Ordering Information
Outside USA, Click Here

PRODUCT
CATALOG #
UoM
USA Price
BUY
Mai Tai M777 System, 115V — rotates to 80 RPM.
1075-00-5
EA
$5,650.00
Mai Tai M777 System, 230V — rotates to 80 RPM.
1075-00-6
EA
Inquire
Mai Tai M700 System, 115V — rotates to 20 RPM.
1075-00-7
EA
$5,175.00
Mai Tai M700 System, 230V — rotates to 20 RPM.
1075-00-8
EA
Inquire



ACCESSORIES
CATALOG #
UoM
USA Price
BUY
Digital Thermometer with NIST certificate.
1051-52-0 EA $285.00
Mai Tai Hybridization Cassette. Holds 4 Agilent Arrays.
1075-10-0 EA $950.00
Mai Tai Rotator for Model 400 and Series 700 Ovens.
1075-20-0 EA $750.00
Mai Tai Rotator for the Agilent DNA Microarray Oven.
1075-20-1 EA $750.00
Mai Tai Hybridization System*

Specification
Description
Equipment Included
Rotating Oven, Mai Tai Rotator and one Mai Tai Cassette
Electrical
Cat # 1075-00-5 or 1075-00-7
Cat # 1075-00-6 or 1075-00-8

115V AC, 50/60Hz, 6A
230V AC, 50/60Hz, 3A
Dimensions (HxWxD)

Outside 22 x 18 x 17 inches (55 x 45 x 42 cm)
Inside 13 x 14 x 14 inches (33 x 35 x 35 cm)
Instrument Weight
69 lbs (32 kg) net
Performance and Controls
Temperature Range
Temperature Regulation
Oven Rotation Speed

Ambient +5.0o C to 99.0o C
± 0.2o C from set point
Up to 20 RPM (Model 700) or 80 RPM (Model 777)

CE





RoHS

Mai Tai Hybridization System*

Publication #
Title
Publication Type
S18
Product Snapshot
505
Manual
406
Support Document
200
Support Document
205
Support Document
